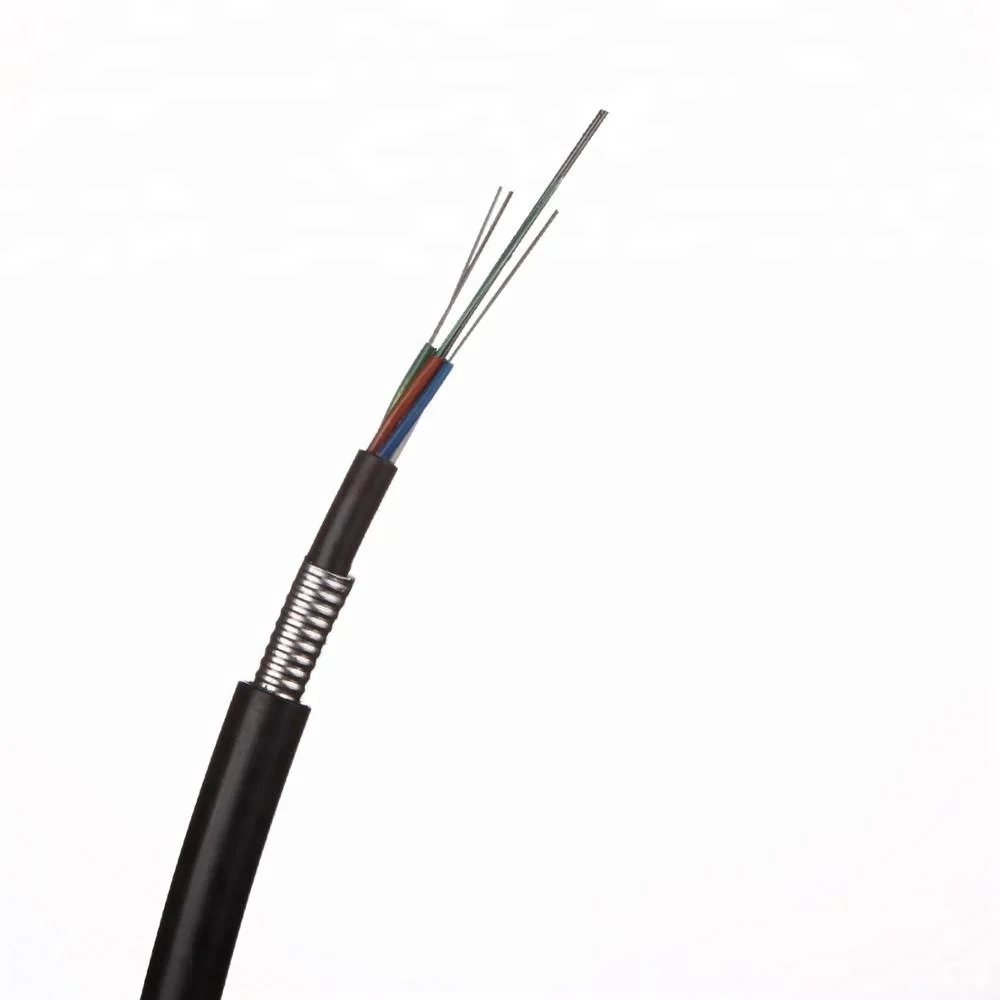

G652D Underground Fiber Optic Cable Double Steel Aluminium Armored

Name: G652D Underground Fiber Optic Cable Double Steel Aluminium Armored
Brand: Huayixin and OEM
Price: 1 USD

G652D Underground Fiber Optic Cable Double Steel Aluminium Armored Manufactures

Brand Name : Huayixin and OEM

Model Number : GYTA53

Certification : CE/Rosh/ISO9001

Place of Origin : China

MOQ : 3KM

Price : Negotiable

Payment Terms : L/C, D/P, T/T, D/A, Western Union, MoneyGram

Supply Ability : 50000KM Per month

Delivery Time : 5-8 working days after payment

Packaging Details : Wooden Drum

Name : Outdoor Fiber optic cable

Fiber : G652D Single mode

Fiber number : 6-288 core

Jacket : Double PE jacket

Fiber Brand : Fiberhome YOFC or corning

Color : Black

Armored : Yes ,Double Armored

MOQ : 3KM

OEM : Accept

Operating temperature : -40~75

Contact Now

Factory Double Steel Aluminium Armored Underground Fiber Optic Cable GYTA53 24 48 96 144 Core

Free Sample Underground Direct Buried Duct GYTA53 GYTY53 Singlemode Fiber Optical Outdoor Cable

Armored Loose Tube Double Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.

Features
Loose tube gel-filled construction for superiorfiber protection.
Double jacket single armored(GYTY53) and Double jacket double armored
(GYTA53) for rodent pr.otection and direct burial.
UV and moisture-resistant design
Applications
Directburied, DuctorUnderground conduits.
Backbone.

Technical Specifications

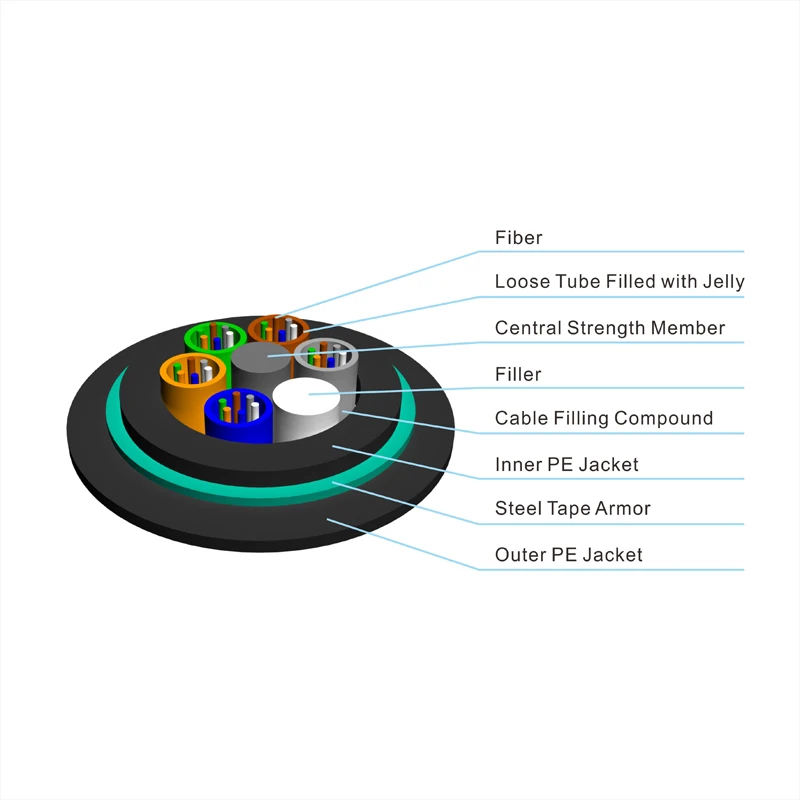

GYTY53(DJSA)

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Short Term	Long Term	Short Term	Long Term
2~30	12.2	142	3000	1000	3000	1000
32-48	12.8	155	3000	1000	3000	1000
50-72	13.6	170	3000	1000	3000	1000
72-96	15.0	192	3000	1000	3000	1000
96-144	16.6	220	3000	1000	3000	1000
＞144	Avaliable upon customer's request

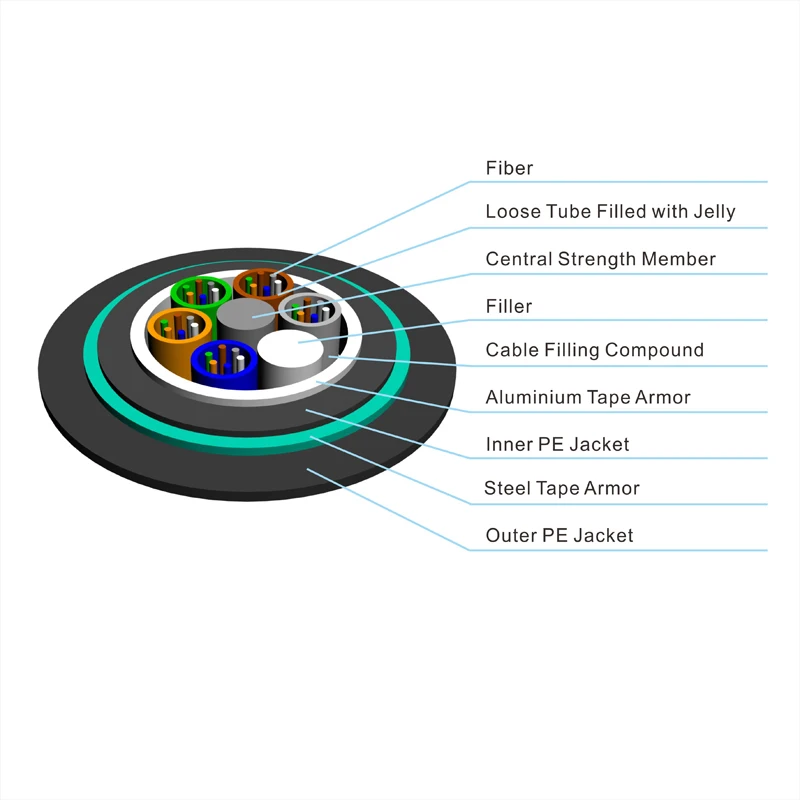

GYTA53( Aluminium polyethylene laminate)

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Short Term	Long Term	Short Term	Long Term
2~30	13.2	162	3000	1000	3000	1000
32~48	13.8	175	3000	1000	3000	1000
50~72	14.6	205	3000	1000	3000	1000
74~96	16.0	230	3000	1000	3000	1000
98~144	17.6	285	3000	1000	3000	1000
＞144	Avaliable upon customer's request

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information
